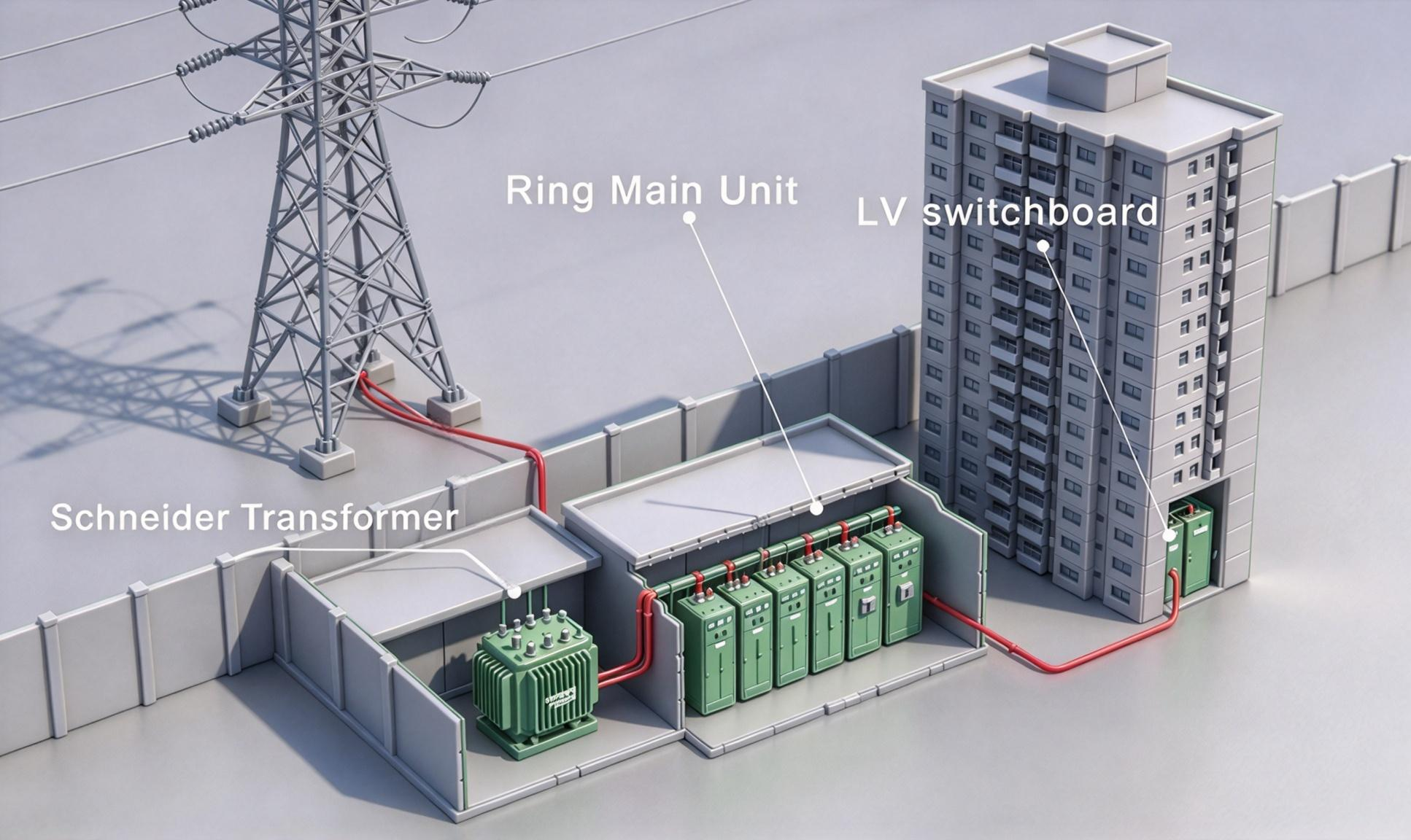

This system adopts Schneider RM series RMU, Trihal cast resin dry-type transformer and Okken LV switchboard to build a complete power distribution chain; with fully matched original equipment, it delivers safe, reliable, energy-saving and eco-friendly performance, featuring compact footprint, low maintenance and intelligent online monitoring. Compliant with IEC standards, the solution is applicable to industrial plants, commercial complexes and data centres, enabling integrated delivery from MV ring main incoming to LV terminal distribution to ensure stable continuous power supply.

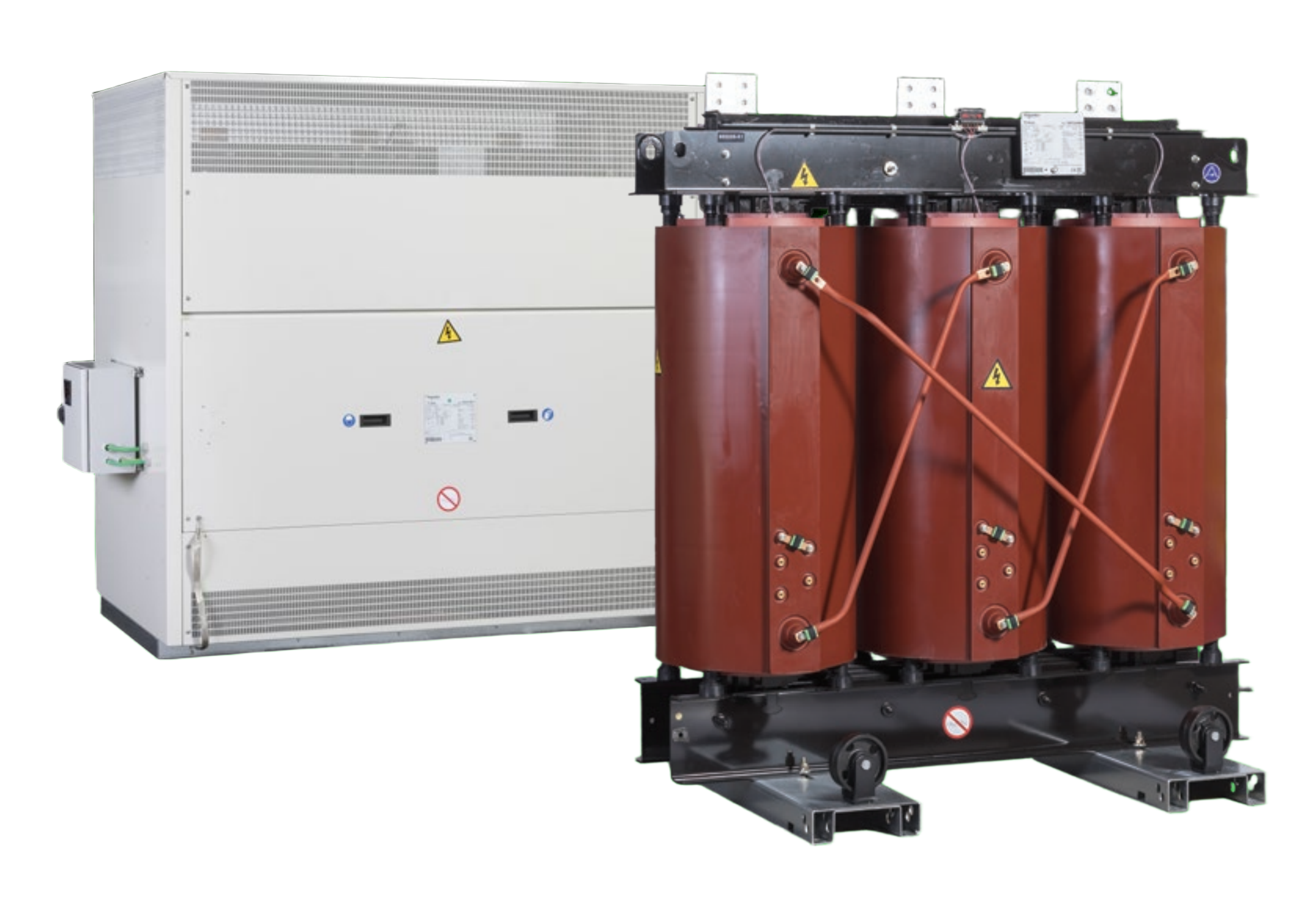

Trihal is Schneider’s cast resin dry‑type transformer. With resin‑encapsulated HV windings and pre‑impregnated LV windings, it is rated up to 36 kV, 160 kVA‑3150 kVA (common ratio 10/0.4 kV), with AN natural air cooling. Complying with IEC 60076‑11 and F1 fire classification, this oil‑free unit is flame‑retardant and self‑extinguishing with no leakage risk. Partial discharge ≤10 pC for routine tests (≤5 pC available upon special test); it carries C4 climatic and E4 environmental resistance certifications. Optional IP31 metal enclosure suits humid and dusty conditions. Featuring low no‑load and load losses for high energy efficiency, it supports optional winding temperature monitoring solutions connectable to EcoStruxure for predictive maintenance. Made of highly recyclable materials, this eco‑friendly transformer is well suited for indoor critical‑load applications including data centres, commercial complexes and industrial plants.
Download

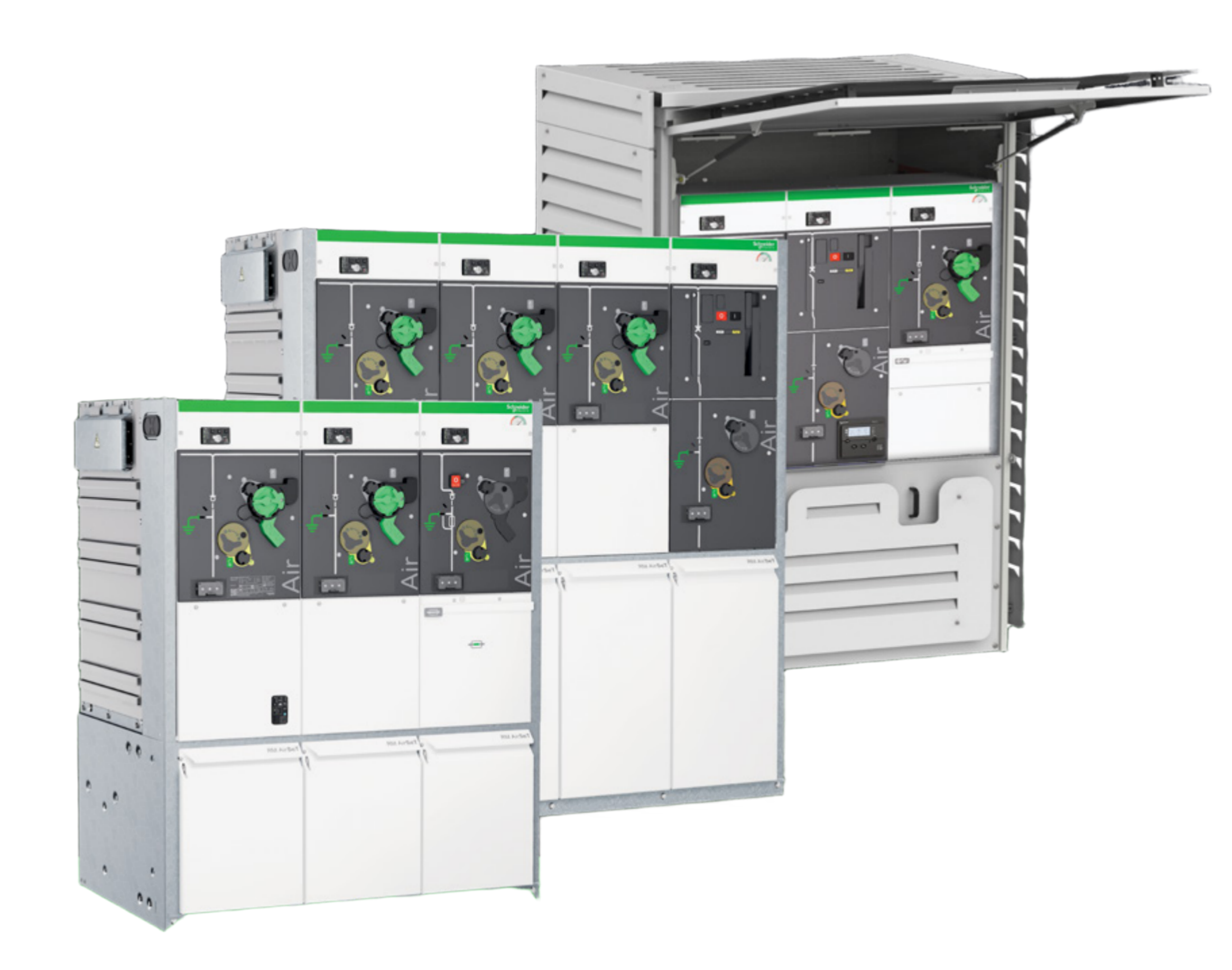

Schneider RM AirSeT: SF₆‑free secondary‑MV ring main unit (24 kV max, 630 A, 20 kA 1/3 s). Adopts pure‑air insulation + patented SVI™ vacuum breaking; IP67 lifetime‑sealed stainless‑steel tank, CompoDrive mechanism (10 000 operations, 40‑year lifespan). Supports optional wireless temperature & condensation sensors, PowerLogic T300 and EcoStruxure for remote grid control. 1‑4 flexible functional units, no SF₆ gas recovery required. IEC‑compliant for industrial, commercial and data‑centre low‑carbon distribution.
Download

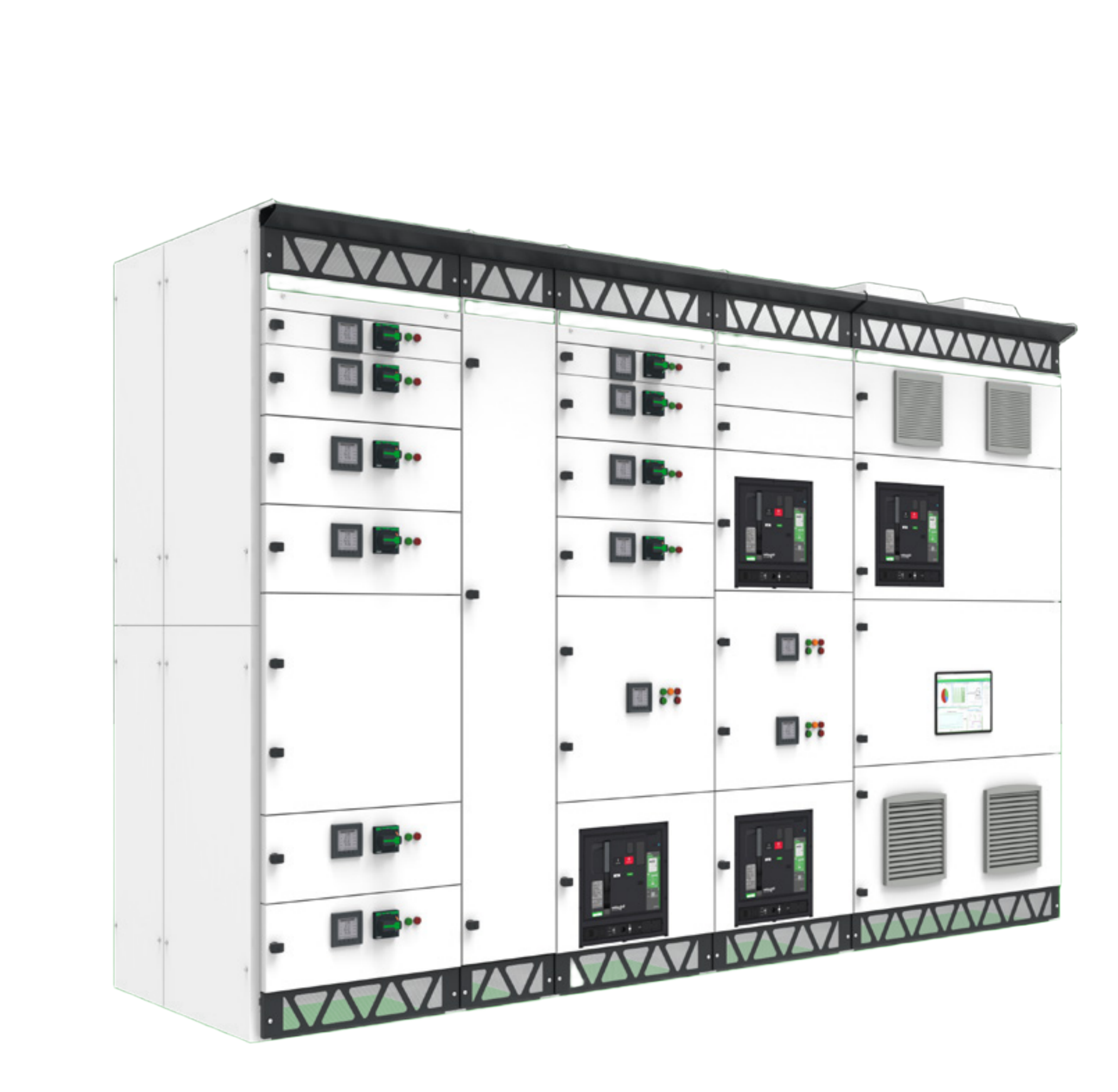

Okken is Schneider’s high‑end modular LV PCC switchboard, featuring a 6600 A max main busbar, up to 480 Vac rated voltage and 100 kA rms‑1s short‑time withstand current. Type‑tested per IEC 61439‑1/2, it covers power distribution and motor‑control‑related circuits including incoming, bus‑coupler, feeder, PFC and VFD. With internal‑arc resistance, it offers Form 2b‑4b compartment segregation and IP20‑IP54 protection. Optional wireless temperature sensors and integrable PowerTag modules connect to EcoStruxure for energy monitoring, hot‑spot warning and predictive maintenance. Boasting 2.7G seismic resistance and Green Premium material compliance (RoHS, REACH), it provides reliable, scalable power for critical‑load projects such as data centres, large industrial plants and commercial complexes.
